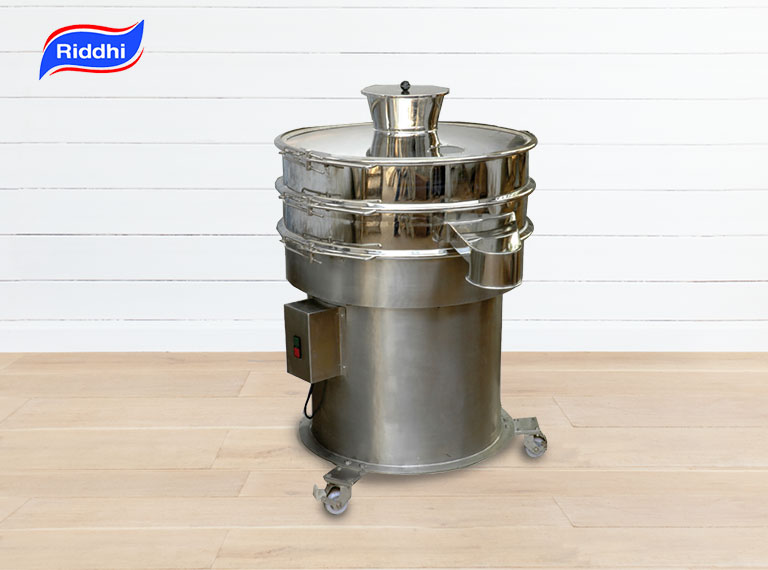

Vibro Sifter

Riddhi Pharma is well-known in India as a prominent Vibro sifter machines manufacturers.

The Vibro Sifter machine operates on the gyratory vibration concept. In the manufacture of our goods, only high-quality components are used. Our given items are generally regarded by clients due to their greatest qualities such as better performance, ease of installation, long life, and little maintenance.These products are created using high-quality materials.

27+

Years Of Experience
Gives you better results.

Get A Free Quote

Our High Quality Products

A conventional Vibro shifter has a circular gyratory screen that separates solids and liquids based on particle size and grade. The material is sorted based on particle size.

When the motor is turned on, the screen/sieve vibrates, forcing the material to pass through the sieves based on its particle size. It generates 100% rotational motion and causes dispersion stirring and material stratification to sift. The feed material flows horizontally on the Vibroscreen, generating a loop pattern. The sieves are placed on a spring to prevent vibration from transferring to the floor.

Download Catalogue

Used Latest Technology And Quality Row Material For Products

Our customers can choose from a wide range of high-quality Innovative Stainless Steel Vibro Sifter.We are a major Vibro sifter Machine suppliers in Maharashtra. A vibro sifter is a strong piece of machinery that filters, sorts, or sieves materials into the required particle size for immediate use or additional processing.

Call Now: (+91) 9821018579

SALIENT FEATURES

1. Ease of cleaning.
2. Low power consumption compared to other vibrating system.
3. Simplified design & construction which is trouble shooting maintenance free.
4. Vibro motor gives trouble free performance for much longer time & so it is better than mechanical sifters.
5. All contact part are from S.S. 316 & rest from S.S. 304.
6. For dust free system, gaskets can be used at in feed mouth & at the out let mouth of this sifter.
7. We can provide Silicone Moulded sieves and non lead free sieves, of all sizes for your Sieving and Grading Machine.
8. Removal of sieve is very easy as there are user friendly clamps for change of sieve for chamber.
9. Castor wheel which are PU coated (optional) with S.S. brackets & thrust bearing ensure easy movement of Vibro sift in the production area.

Technical Specifications Of Vibro Sifter

It boasts a particularly tranquil design, an enclosed construction that provides dust-free operation, and a leakage-proof mechanism. Furthermore, the Vibro sifter machine’s weld joints are crevice-free, ensuring sanitary and contamination-free operation.

Model	RDVS-20	RDMS-30
Screens	Stainless Steel 304/316 quality & of different mesh size as per requirement	Stainless Steel 304/316 quality & of different mesh size as per requirement
Screen Diameter	550mm	750mm
Charging Height	125mm	1250mm
Discharging Height	550mm	550mm
Electrical Motor	0.25 HP.3. A.C.	0.5 HP.3. A.C.
Overall Dimension in mm	600(w)600(D)800(H)	770(w)770(D)800(H)
Net weight	125kg	175kg
Capacity /hour	20-200kg	30-300kg
*Varies according to product characteristic and screen type.

S.N.	FEATURE	TECHNICAL SPECIFICATIONS
1	Equipment	*RIDDHI* Ø48″ Vibro Sifter GMP Model Machine
2	Model No.	RDVS-48
3	Type	Single Deck, GMP & FLP.
4	Mechanism	Spring Loaded.
5	Output Capacity	Upto 300 Kgs. / Hr. depending upon material charac.
6	Screen Size	1200mm.
7	No. of Outlet	1 No.
8	Contact Parts	S.S.316 Quality
9	Non-contact Parts	S.S.304 Quality Covered / Cladded.
10	Finishing	Mirror Polished.
11	Mounting	4 Nos. Castor Wheels
12	Motor	1.5 H.P., 415 V, 50 Hz., 3 Phase AC Supply FLP Type.
13	Motor Make	Vibrant / Equivalent.
14	Starter	D.O.L. (DOL) & FLP Type.
15	Starter Make	SAI / Equivalent.
16	Overall Dmns.	56” (L) x 52” (D) x 49”(H) – Approx.
17	Net Weight	250 Kgs. Approx.

S.N.	FEATURE	TECHNICAL SPECIFICATIONS
1	Equipment	*RIDDHI* Ø60” Vibro Sifter GMP Model Machine
2	Model No.	RDVS-60
3	Type	Single Deck, GMP & Non-FLP.
4	Mechanism	Spring Loaded.
5	Output Capacity	Upto 500 Kgs. / Hr. depending upon material charac.
6	Screen Size	1500mm.
7	Wall Thk. of Deck	14 SWG. / 2mm.
8	No. of Outlet	1 No.
9	Contact Parts	S.S.316 Quality
10	Non-contact Parts	S.S.304 Quality Covered / Cladded.
11	Finishing	Mirror Polished.
12	Mounting	4 Nos. Castor Wheels
13	Motor	2 H.P., 415 V, 50 Hz., 3 Phase AC Supply Non-FLP Type.
14	Motor Make	Vibrant / Equivalent
15	Starter	D.O.L. (DOL) & Non-FLP Type.
16	Starter Make	BCH / Equivalent
17	Overall Dmns.	68” (L) x 72” (D) x 49”(H) – Approx.
18	Net Weight	300 Kgs. Approx.

Modifications to fit the needs of the clients!

The machine is made up of a specially designed vibratory motor that generates vibration in three distinct planes along the vertical axis. It is a necessary accessory for material gradation in a laboratory. They have a variety of uses, and each one can be tailored to a specific need. It is widely utilized in the pharmaceutical and food processing industries.
