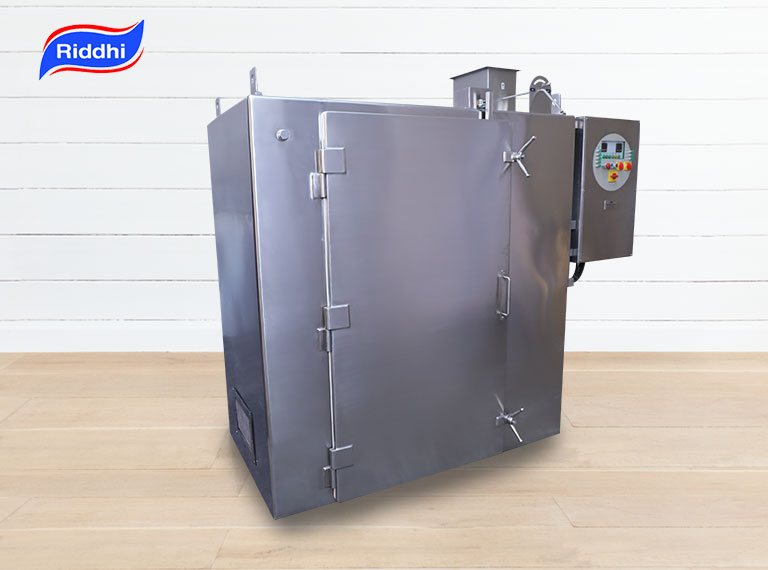

Tray Dryer

We are one of the top Tray Dryer manufacturers and suppliers, and we work hard to keep its quality high.

As a result, we create the same with the highest quality raw materials and cutting-edge technology. The unrivaled performance of this dryer ensures the user’s complete delight. Furthermore, its heavy-duty capacity makes it one of the market’s first choices.

27+

Years Of Experience
Gives you better results.

Get A Free Quote

Our High Quality Products

We provide a precision manufactured variety of tray dryers that are precisely built for consistent hot air circulation in the drying chamber. Due to our extensive knowledge and dedication to quality, we have been clients’ first choice for heating, drying, and cooling services.

Till date, we have created a variety of tray dryers while keeping the needs of our customers in mind. Also, we provide these precision-made Tray Dryer at extremely competitive pricing.We are the industry’s top tray dryers manufacturer and exporter, with products that are well-known for their durability and great performance.

Download Catalogue

Used Latest Technology And Quality Row Material For Products

We always create our items without sacrificing quality requirements. Tray drying is a batch procedure used to dry liquid or wet cake materials. The input materials are batched, loaded into trays, and dried in overhead ovens. Initially, moist solids are loaded onto trays, which are then placed in dryer chambers.

Call Now: (+91) 9821018579

CONSTRUCTION

The dryer is of robust construction built on formed angles of 3mm thick sheet and suitably reinforced with angles and sections. The dryers external walls are manufactured from 1.6mm thick Stainless Steel sheets of 304 quality. The internal of the dryer is built of 1.6 mm thick S.S 304 quality sheets. The internal structure is fully TIG welded and all the internals have ground smooth surfaces.

It is insulated with minimum 50 mm thick glasswool insulation and Cladded with SS 304/SS 316 , Polished sheets. The dryer is having a fresh air inlet through 20 Micron PP cloth filters and a adjustable air outlet flap and a door at the front. The door is explosion proof and is locked with the help of spring loaded ball latches with suitable pressure. Door lips are having Neoprene rubber Gasket to prevent leakages.

FINISHING

The design and manufacture of the dryer is of high standard of GMP and has an aesthetic look. It is buffed externally to 150 grit matt finish and internally buffed to 220 grit mirror finish.

ELECTRICAL HEATING

The Air inside the Tray Dryer is heated by "U" tube S.S.304 air heaters each of 1 KW.The heaters are fitted on the sides of the dryer to facilitate uniform heating. Maximum temperature attained inside the dryer is 100' C and will be indicated and controlled by a Digital Temperature indicator cum controller over full range of heating load.

Total heating load for it will be

12 Trays Dryer - 4 KW

24 Trays Dryer - 6 KW

48 Trays Dryer - 12 KW

96 Trays Dryer - 24 KW

The heaters will be inserted inside tubular pipe to prevent it from becoing RED HOT. The terminals of the heaters will be brought outside the dryer to make it more safe for operations for solvent based products. Optional Steam Heated models are also available.

(OPTION FOR FLAME PROOF ELECTRICAL HEATERS ARE ALSO AVAILABLE)

AIR CIRCULATION

Air inside the dryer is circulated by one heavy duty axial flow S.S.304 or alluminum blower fitted on a shaft of and driven by H.P. through belt. The special design of the Blower ensures uniform air circulation so that there is uniform air current over the entire charge loaded in the Trolley inside the dryer. The working of the motor is indicated by lamps in the control panel.

TRAYS

Trays will be manufactured from 1.6 mm SS 304/ SS 316 or SS 316 L sheets.Its dimensions are 32" x 16" x 1 l/4". The Trays have rounded corners with' mirror finish from inside and outside. SS 316 quality is available on demand.

RACKS AND TROLLEYS

Racks are provided for trays inside the Dryer. They are of fixed type for 12 and 24 Trays Models. For 48 and 96 Trays Models. Racks are provided with wheels to slide them in and out of the Dryer. An additional S.S, trolley for Racks for outside movement can be provided on request.

Technical Specifications Of Tray Dryer

After then, fresh air is introduced by the intake, and the air is heated by passing it through the heaters. The fan(axial flow type blower fans) in the tray dryers is used to circulate the hot air at a speed of two to five meters per second. The heated air picks away from the water.

Model	RDTD-24	RDTD-48	RDTD-96
No. Of Trays	24	48	96
Tray size	16 x 32 x 1.25	16 x 32 x 1.25	16 x 32 x 1.25
Heating Load At
100⁰C	6 x1000 W	9 x 1000 W	15 x 1000 W
200⁰C	9 x1000 W	15 x 1000 W	21 x 1000 W
300⁰C	12 x1000 W	18 x 1000 W	27 x 1000 W

Modifications to fit the needs of the clients!

We are one of the pioneer Pharmaceutical Machinery Manufacturers from India, We manufacture several types of Dryers, one of them is Tray Dryer, Tray dryer can be electrically heated, and Steam heated. Tray Dryer comes in 6 trays, 12 trays, 24 trays, 48 trays, 96 trays and 192 trays.
