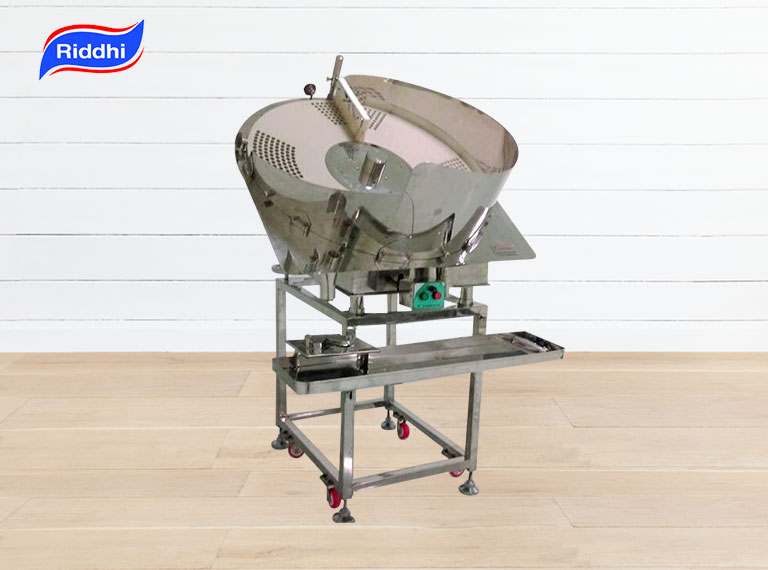

Tablet Capsule Counting Machine
We offer the finest quality Tablet Capsule Counting machine to our prestigious customers. Our offered tablet capsule counting machine is specifically developed for precise medication counting and suitable packaging. It is high-performance anti-dust sensor technology. These machines are manufactured in compliance with industry standards and are widely utilized in the pharmaceutical sector for effective counting and filling of different capsules into bottles/bags.
Gives you better results.
Our High Quality Product
These lines are incredibly popular among our consumers, and we offer them at industry-leading pricing. We are one of the reliable and well-known firms engaged in providing a comprehensive range of Capsule Tablet Counting Filling Machine at competitive costs to our customers.
The counting is 100% precise due to contemporary sensors that recognize the objects even when they are moving at high speeds, and accurate counting with good stability is even feasible in heavy dust circumstances. To facilitate control and operation, the machine is outfitted with an easy-to-use and ergonomic HMI interface as well as a cutting-edge PLC. Also, When a defect occurs, it self-diagnoses it and ceases operating with an alarm.
Used Latest Technology And Quality Row Material For Products
It also feeds with a specially built mechanism that ensures no material breaking. These machines do not need to replace components while filling various goods, reducing idle time and increasing production. A photoelectric scanner at the filling station counts the specified number of capsules/tablets before stopping till the next container is positioned at the filling station.
Salient Features Of Tablet Capsule Counting Machine
Two filling nozzles are included inside the machine for continuous counting and filling. Each disc is specifically designed and manufactured to match the needs of the customer. Dust Extractor (optional) to remove dust particles from the path to the container, allowing the dust-free filling of tablets and capsules.
A unique machine to COUNT & FILL tablet / capsules up to 1000 both in polybags and rigid containers in bulk quantity and also where you need medium yeild. A 36″ Dia counting disc gives promised capacity of fill. Each disc is custom designed and manufactured to count coated / uncoated tablets, hard or soft gilatin capsules of any shape and size such as pearls, oglong and round except caplet shape.
One container or polybag can be filled manually at a time through single-track filler with following output @ 6rpm speed see output chart. The rpm varies depending upon the product. Delivery chutes direct the product from the counting disc into telescoping SS filler tubes of various sizes to suit different containers. Integrated with the filler, under the hopper is the vaccume system that provides dust free passage of stocks to the containers. The special Dust Extractor system to remove dust particles from the passage to the container and enables efficient and smooth running of the disc when uncoated tablets are counted.
AUTOMATIC SINGLE DISC TABLET / CAPSULE COUNTING & FILLING MACHINE. – FASD
2.) 230 volts, single phase or 440 volts, three phases, 1 HP.
3.) Net wt./ Gross wt. 300kgs./ 375kgs.
| TECHNICAL SPECIFICATION | |
| Tablet size | Any Size |
| Capsule | 0 to 5 |
| Container Size | up to 6 Inches |
| Power Required | 3 Phase 440 V/220V |
| Getting System | Single Phase 230V |
| Unscrambler | 36” Dia. |
| Conveyor | 72” |
| Height | Adjustable between 30” to 36” |
| Width | 60” |
| Height | 66” |
| Length | 80” |
AUTOMATIC DOUBLE DISC TABLET / CAPSULE COUNTING & FILLING MACHINE. – FADD
Automatic Double Disc Counting Machine with output capacity of minimum 30 to 120 Bottles Per Minute (Depending on the neck diameter of the bottle and product).This model FADD is equipped with highly sophisticated technology and superior production techniques in order to get greater and faster productions in the counting and filling of capsules/tablets. Up to four bottles can be automatically filled at a time through a twin 4 track filler.Up to 30 to 120 bottles per minute depending upon the number of counts per fill.
For accuracy versatility and lowest packaging cost. An ideal machine to count & fill tablets/capsules up to 30 to 120 bottles in glass bottles and rigid containers in bulk quantities and also where you need peak output. Two containers can be filled at a time through a double track filler. Disc on double fill model gives the highest capacity. Each disc is custom designed and manufactured to meet your individual filling requirements. These exceptional machines are versatile enough to count coated/uncoated tablets, hard or soft gelatin capsules of any shape and size such as pearls, oblong and round.
| Dia of Tablet | |
| 20’s Up to 10mm 120 Bottles / min | |
| 50’s Up to 10mm 120 Bottles / min | |
| 100’s Up to 10mm 90 Bottles / min | |
| 250’s Up to 10mm 48 Bottles / min |
Modifications to fit the needs of the clients!
It is capable of counting and filling 1 to 1000 capsules into containers/bags. We have two capsule counting machines available: one disc-type and one PLC-based digital capsule counting machine.
