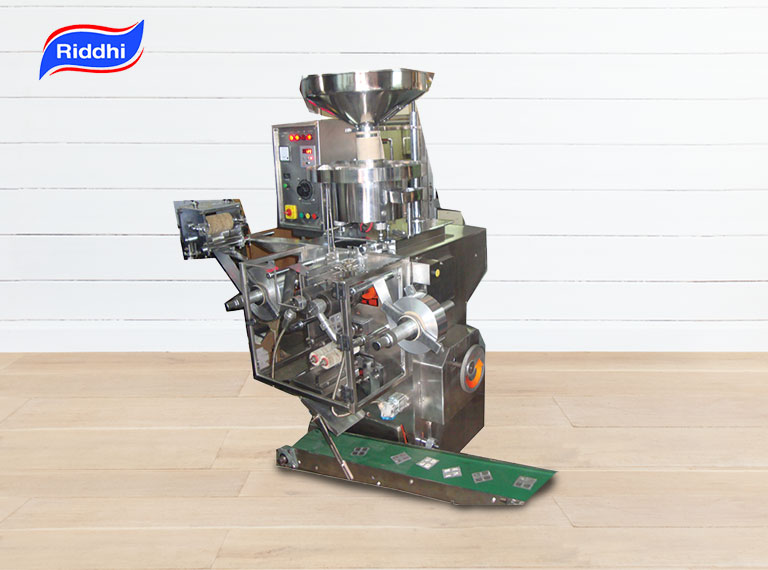

Strip Packing Machine
As a quality-conscious business, we offer a wide line of Strip Packing Machine to our customers. These machines are built in our well-equipped manufacturing plant under the supervision of our expert specialists, utilizing only the best components. Strip pack machines are frequently used in pharmacies for pills and tablets, for food such as chocolates, effervescent tablets, Altapharma and other units, dose packings such as throat lozenge, honey lozenge, and for consumer items such as mosquito-repellent incense mat and electric mosquito mat.
Gives you better results.
Our High Quality Products
The strips pack meets the moisture-proof and light-proof packaging requirements by employing Alu/Alu or plastic/plastic film material. Strip packing machines are designed to handle a wide variety of goods with exceptional precision and at rates of up to 2400 units per minute.
We are reckoned as a prominent Strip Packing Machine suppliers. The products exit the hopper and are routed through a stainless steel feeding system to sealing roller chambers, where laminated foils are taken from two rollers packs and seal the products in a continuous strip.
Used Latest Technology And Quality Row Material For Products
The strip is then routed through vertical and horizontal cutter assembly to produce the necessary strip package sizes. Strip Packing Machine Appropriate for Strip combines a diverse selection of products into a single, readily dispensable strip while maintaining economy and efficiency.
2.) It is easy to operate and anyone can learn the operation instantly.
3.) The exterior of the machine is made out of Stainless Steel, which makes it easy to be cleaned and meet G.M.P.
4.) Automatic Feeding, Sealing, Slitting and Cutting are done simultaneously. Therefore, its efficiency is high, meaning production cost is decreased due to reduction of labour cost.
CHUTE : The Device grips the various pieces and centers them for their entry in to the sealing Roller.
SEALING ROLLER: The Temperature of Sealing Roller can be steadily maintained because precise temperature control device is adopted.
SLITING : The column number and location of the slitting can adjusted easily.
DRAW BRUSHES : Tense the strip makes sure the Sealing and Cutting is perfect.
CUTTER : The row number of cutting can be adjusted as per your
Technical Specifications Of Strip Packing Machine
Our strip filling and sealing machine is compact in design, requiring only a little amount of floor space, it is simple to use by just pressing buttons, it is easy to modify the length of the PVC board, has a steady working performance and a long service life.
| DRIVE MOTOR | 0.5 HP 3 Phase 415 Volts 50Hz |
| NET WEIGHT | 450.000 Kgs. |
| GROSS WEIGHT | 750.000 Kgs. |
| DIMENSION | 1000(L) X 850 (W)X 1850 (H) MM |
| MODEL | 4 TRACK | 6 TRACK | 8 TRACK | 10 TRACK | 12 TRACK |
| Foil Width | 145mm | 210mm | 260mm | 280mm | 310mm |
| Output /Min. | 600-1200 | 1200-1800 | 1800-2500 | 2250-3125 | 2700-3750 |
Modifications to fit the needs of the clients!
This machine employs human-machine interface operation, PLC programming, frequency conversion, and speed regulation, as well as a high degree of automation and ease of operation by combining all operations into modules. Also, our customers can easily purchase the supplied Strip Packing Machine at a market-leading price range.
