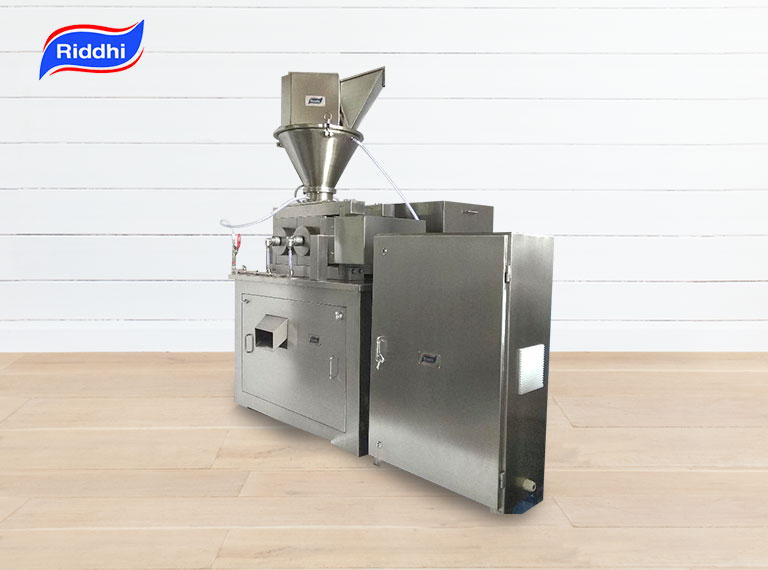

Roll Compactor
We are highly skilled manufacturers and suppliers that are well-known for the exceptional quality of our CGMP Roll Compactor Machines. Our supplied roll compactor machine is trusted by a large clientele for its unified force distribution and is created with innovative technology to produce equal grade granules.
Gives you better results.
Our High Quality Products
It is simple to clean, making it perfect for quick product change-over, as well as preventing contamination from one product to the next. The proposed machine has a working speed of 2 to 5 kg per hour and comes with a water jacket.
In addition, our quality compliant roll compactor is offered at a low cost with a gearbox and feed screws. It is also suitable for batch or continuous processing of a wide range of materials. In addition, our offered machine is praised for its advantages such as ease of use, low cost, and extended service life.
Used Latest Technology And Quality Row Material For Products
We are a reputable roll compactor machine suppliers in India, offering a variety of models with varying capacities. It is used for powder densification and granulation in the pharmaceutical, food, and chemical industries, among others.
2.) Very Compact Design available in plain, water jacketed or flame proof model.
3.) Riddhi Roll Compactor RDRC 200/50 & 200/75 are GMP models. Totally enclosed with SS304 cladding and frame work - ease of cleaning.
4.) Feeding device and sealing of roll by means of check plates and all parts which are exposed to wear are made of hardened steel. The compacting head is two piece assembly for easy dismantling.
5.) Pre-densifier screw comprises of cylinder or conical shape which is well polished and made of AISI SS-304 quality material.
6.) Rolls drive through twin shaft gear box with speed drive unit coupled to it using a flexible coupling which ensures synchronization of the roll with a steady torque loading.
7.) Scrapper Assembly so designed to dismantle for ease of cleaning.
8.) Compacting rolls sleeves are made out of tool steel, hardened to 55 HRC approx., & are keyed into shaft & thus protected against axial slipping by thrust plates & bolts.
9.) Pre-Compression chamber guides the powder without any slippage or leakage.
10.) The feed screw assembly can be hydraulically lifted by hand - operated hydraulic pump. This facilitates ease in cleaning.
11.) All controls and indicators of the compactor are permanently built-in namely, on/off rolls, on/off feeds screw, main switch forward / reverse switch, ammeters for rolls & feed screw & emergency stop.
12.) The main roll drive & feed screw are electrically interconnected.
Technical Specifications Of Roll Compactor
It is also used for increased bulk density, creating granules, dust-free processing, and lowering particle size of medicinal components in the pharmaceutical business, food, and chemical industries. Under extreme pressure, the material in the form of powder is forced through the roller compactor’s two counter spinning wheels.
| Model No. | RDRC – 100 / 25 (LAB.) | RDRC – 100 / 25H (LAB.) |
| Type of Model | GMP, Plain & Non FLP Model | |
| Size of Roll | Ø100 x 25mm Width | |
| Output * ( Kg. / Hr. ) | 2 to 5 | |
| Roll Gap Adjustment | Fixed to 0.5mm | Hydraulically Adjustable 0.5 to 1.5mm |
| No. of Hydraulic Cylinder | Not Applicable. | One No. |
| Max. Operating Pressure | 5 Tons / 50 kN | |
| Main Motor | 1 HP / 415V / 50 Hz., / 3 Phase Non FLP Type. | |
| Feed Screw Motor | 0.5 HP / 415V / 50 Hz., / 3 Phase Non FLP Type. | |
| Power Pack Motor | 0.75 HP / 415V / 50 Hz., / 3 Phase Non FLP Type. | |
| Models | RDRC-200/50 | RDRC-200/75 | RDRC-200/100 | RDRC-200/150 |
| Max. Output (kgs/hr) | 20 to 60 | 30 to 100 | 100 to 250 | 100 to 350 |
| Roll Speed | 6 to25 RPM | 6 to25 RPM | 6 to 22 RPM | 6 to 22 RPM |
| Feed Screw Speed | 10 to 60 RPM | 10 to 60 RPM | 16 to 50 RPM | 16 to 50 RPM |
| Roll Drive Motor | 5 HP. 3. A.C. | 5 HP. 3. A.C. | 7.5 HP. 3. A.C | 10 HP. 3. A.C. |
| Feed Screw Drive Motor | 1 HP. 3. A.C. | 1 HP. 3. A.C. | 3 HP. 3. A.C | 3 HP. 3. A.C. |
Modifications to fit the needs of the clients!
The substance is shaped into a solid compact sheet or flakes of components as the volume drops through the area of greatest pressure. To acquire the correct grain size, these flakes or compact sheets of components are decreased in size. During this phase, the machine takes extra precautions to avoid the formation of fines.
