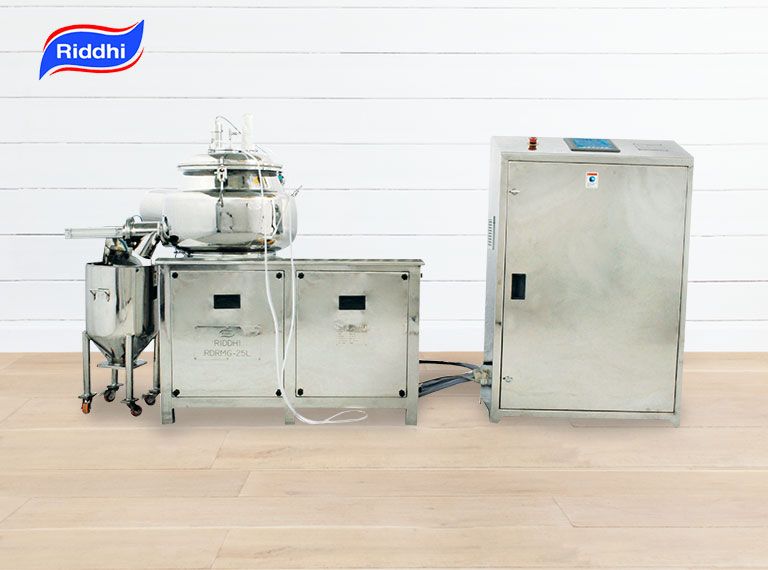

Rapid Mixer Granulator

Pneumatically Openable (except RMG 50 & 100LTRS) type lid consists of charging hole, air filter and special type silicon gasket.

Mixing blade consisting of two Nos. full and two Nos. half blades specially designed for intense mixing. The angles of the blades are such that half blades lift the material and full blade pushes the material. Continuous action of this with the different ingredient immensely mixes thoroughly with homogeneously.

Mixing blade assembly is mounted on main shaft with separate bearing housing which fully eliminate any chance of cross contamination of product with any lubricants. The upper portion of the housing contains specially designed Teflon seal along with air purging facility. Lower stage housing contains bearing alongwith oil seals that make it completely leak proof.

The bearing housing of the main shaft connected to gearbox by means of heavy-duty chain coupling. Chopper blade assembly consists of a separate baring housing coupled to motor by means of flexible coupling, with Teflon impregnated gland packing and air seals.

A high speed Granulator is inserted horizontally through the wall of the bowl to assist blending of powder and to break the lumps of the products in to granules of required sizes. These lumps are formed while wet mixing.

Machine has a side discharge outlet with pneumatically operated. The discharge valve is exactly matching the profile of the intervene bowl with perfect sealing arrangement. Pneumatic cylinder housing is specially designed with swivel type arrangement, which helps for easy cleaning. Safety interlocks are provided to discharge valve as well as top lid with limit switches.

Rigid Machine base frame made from M.S. Square pipe is designed to accommodate the mixing bowl and the control panel. The motor V belt drive and reduction gear are also housed in the frame. The machine base is totally enclosed and removable flush type S.S give access to motor gearbox and belt drive inside and machine base. Removable S.S. Cover finished mirroring finish on all side of the machine base frame. Inside of the M.S. base frame duly epoxy painted to avoid any rusting. The bottom of the base frame duly covered with M.S. Sheet. So that any oil or dust from belt should not fall on the floor.

MAIN PANEL
All the main Circuit like Switchgears, Relays, and MCBs etc. will be contained in a S.S. Panel box and kept in Non Flame Proof area.

PROCESS TIMER
SAMS make Process Unit with programmable digital timer, auto mode indicating lapsed/balance time etc.

OPERATING PANEL

PLC HMI based control panel with Scada, 12 CFR compliant Part 11

An Operating Panel mounted near the mixing bowl for the easy operation in the case of NON FLP MOTOR. In FLP only Flame Proof Operating unit provided near the Bowl with auto manual switch, Emergency stop and push buttons for main motor, chopper motor Discharge valve open and close, ammeter for main motor and chopper motor.

The machine is supplied with duly required pneumatic systems of FESTO/CAMOZZI Make. The customer has to ensure, supply of oil free compressed air, also free from any other possible impurity, which may contaminate the product. Air filter and Air water separator are also provided with the machine. Pressure regulator is provided to regulate the desired air pressure. The systems is suitable to accept an Input air pressure of 7kg/cm2 to be terminated at ½" " BSP" terminal. Air lubricator is provided to lubricate solenoid valves and pneumatic cylinders is incorporated in the system.

A Pressure Switch is incorporated in the Pneumatic circuit to ensure that unless required minim air pressure is available in the system the machine cannot be started. And once the machine starts and if drop below pre-set the value the machine stops immediately. In case the Flame Proof Machine the pressure Switch is fitted in main panel. All M.S. parts will be cladded with SS 304Q sheet and all SS parts will be polished to smooth surface.

Dry Mixing approx: 3 - 5 Mins
Wet Mixing approx : 5 - 10 Mins
Wet Granulation approx: 5 - 10 Mins
Discharge approx : 1-15 Mins

Above time may vary from material to material.

1.) Wide range of applications.
2.) Short mixing and granulation time.
3.) Uniform granules by gentle processing.
4.) Bowl shape design to have no dead spaces.
5.) Easy scale up & Scale down between machine sizes.
6.) Uniform distribution of all formulation ingredients.
7.) Useful working capacity of upto 80% to 40% of bowl volume.
