Powder Mixer Machine

We are a leading Powder Mixer machine manufacturers in India.

Our is a well-known company that specializes in making and delivering high-quality Powder Mixer equipment. Our machine has garnered a lot of attention in the industry because of its long operating life, minimal maintenance, and durability. Because of their excellent functionality and durability, these machines are used in a wide range of industries.

27+

Years Of Experience
Gives you better results.

Get A Free Quote

Our High Quality Product

This machine is available with us in a variety of configurations, having been designed and built using cutting-edge technology and high-quality materials. Also, we plan to ship these devices to consumers in tamper-proof packaging.

As one of the Powder Mixer machine suppliers, we put this product through a series of quality inspections. It is manufactured utilizing quality raw materials and various quality tests. The product is used in a variety of sectors for the mixing of various dry ingredients and wet pastes. The mixer is made up of a mixing drum, a mixing paddle, and a sealing arrangement

Download Catalogue

Mass Mixer

In India, we are a prominent Mass Mixer manufacture. With extensive experience and conformity in this field, we are committed to providing a high-quality Mass Mixer Machine.

CONSTRUCTION

The mixer consists of mixing drum complete in itself. It contains mixing drum body, mixing paddle and sealing arrangement. The drum rests on rigid MS fabricated body carrying motor, gear box, starter and tilting arrangement. The drive of mixing paddle is through suitable oil filled worm gear unit which in turn get drive through v belts from a suitable motor. The blades of the paddle are so arranged that thorough mixing is obtained. All parts which are in direct contact with the material to be mixed are of SS or neutral material. The main paddle runs in journals and supported by thrust bearings of ample size to carry rigid and thrust load. The whole drum of mixer makes ease of cleaning.

PLASTIC DUST COVER

The material under mixing process can be apparently seen from the plastic dust cover of the container at all times and it, being hinged and holding allows solution to be added through without difficulty while the mixer is in motion.

SAFETY

The plastic dust cover is so interlocked that on opening the cover the motor automatically stops. The interlocking system is given to avoid the accident as the machine will not start unless and until container is totally closed. This is of utmost importance in a machine like this which has revolving blades.

SEALING ARRANGEMENT

Specially designed self adjusting sealing arrangement of unique design is provided to ensure that no black particle enters into the mixing drum. However, little powder from inside may come out some time after a long use which suggests cleaning and readjusting of pressure springs.

LUBRICATION

Provision is made for lubricating all moving parts and specially designed to prevent oil coming in contact with the powder.

TECHNICAL SPECIFICATION

Model No.	RDMM – 100 GMP
Model Type	Horizontal
Capacity	100 Kgs.
Over-flow Capacity	220 Litres
Working Capacity	156 Litres
Speed of Stirrer	32 RPM
Contact Parts	SS 316
Non Contact Parts	SS 304 Cladded or Covered
Motor	5HP / 415 V / 3 Phase, 50 Hz. Non FLP Type
Gear Box	Worm Reduction Type
Starter	D.O.L. Starter for 5 HP Motor
Starter Make	BCH / Equivalent.
Overall Dimensions(in cms.)	203 (L) x 635 (W) x 112 (H).
Net Weight	450 Kgs.

TECHNICAL SPECIFICATION FOR 150 KGS

Model No.	RDMM – 150 GMP
Model Type	Horizontal
Capacity	150 Kgs.
Over-flow Capacity	330 Litres
Working Capacity	234 Litres
Speed of Stirrer	24 RPM
Contact Parts	SS 316
Non Contact Parts	SS 304 Cladded or Covered
Motor	7.5 HP / 415 V / 3 Phase, 50 Hz. Non FLP
Starter	D.O.L. Starter for 7.5 HP Motor Non FLP.
Overall Dimensions(in cms.)	215 (L) x 80 (W) x 130 (H).
Net Weight	550 Kgs.

TECHNICAL SPECIFICATION FOR 200 KGS.

Model No.	RDMM – 200 GMP
Model Type	Horizontal
Capacity	200 Kgs.
Over-flow Capacity	425 Litres
Working Capacity	325 Litres
Speed of Stirrer	24 RPM
Contact Parts	SS 316
Non Contact Parts	SS 304 Cladded or Covered
Motor	10 HP / 415 V / 3 Phase, 50 Hz.Non FLP
Starter	D.O.L. Starter for 10 HP Motor Non FLP.
Overall Dimensions(in cms.)	250 (L) x 90 (W) x 140 (H).
Net Weight	625 Kgs.

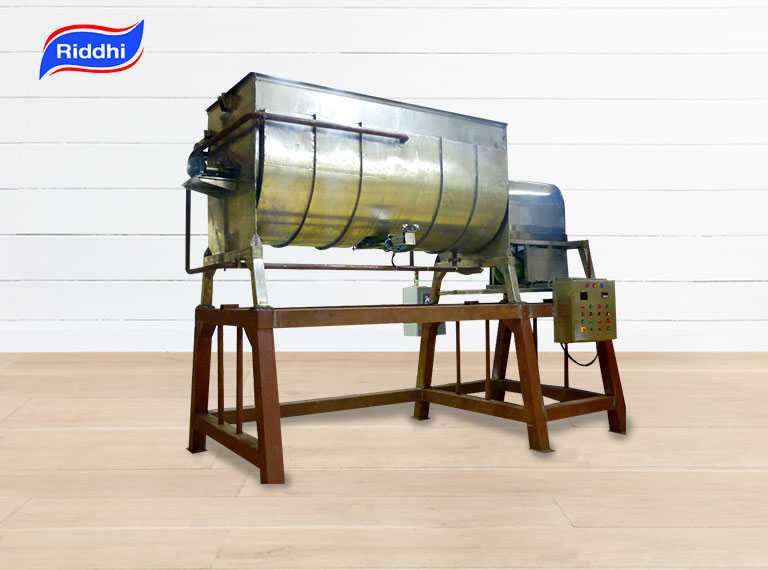

Ribbon Blender

Ribbon Blender’s a light duty blender mainly used for easy to mix powder componenets which are pre-processed like dried granules, pre-sieved powders etc.

It is a low shear mixer and mostly used for solid/solid mixing. Solid / liquid mixing can also be achieved when high shearing force is not desired. It occupies less head room space for large volume mixing unlike Double Cone Blender , V Blenders etc.

Salient Features

1.) Available in two shapes
2.) Mixing of Cosmetic powders.
3.) Dry Blending of capsule formulation.
4.) Capacity available 125 L to 5000 liters
5.) Batch size based on 70% of Blender Volume
6.) U-for Low to Medium Volume capacity (Singel shaft)
7.) W- for Large to Mega volume capacity (double shaft)
8.) Preferred for lubrication of granules in large quantities.
9.) Feeding through a charging port mounted on the top of the blender
10.) Bearing mounted on lanterns out of Mixing zone to avoid contamination.
11.) Reduced Material handling due to side discharge facility of processed materials.

Applications

1.) Mixing of cosmetic powders
2.) Dry belnding of capsule formulation
3.) Lubrication of dry granules in large quantity
4.) Dry Mixing of free flowing powders requiring low shearing force

Model	RDRIB-1	RDRIB-2	RDRIB-3
Gross Capacity	150	500 ltrs.	1000 ltrs.
Working Capacity	125	400 ltrs.	800 ltrs.
HP	3/5hp	5/5hp	7.5/10hp
RPM	12 to 30	12 to 30	10 to 25
Blower Capacity	90 CFM	90 CFM	150 CFM
Heater KW	3.5	5.5	5.5
Blower Motor	0.33 HP	0.3 HP	1 HP
Elec	3 . A.C.	3 . A.C.	3 . A.C.

Modifications to fit the needs of the clients!

Also, the mixer’s whole drum makes cleaning simple. It provides homogeneous and consistent material mixing to produce the highest quality powder and is available from us at a competitive price. We have the product in a variety of sizes ranging from 100 to 10,000 liters.
