Pellet Making Machine
We offer the most innovative and superior quality pellet-making machine that may serve your goal with genuine efficacy and can be used for both personal and business purposes. Our offered pellet-making machines are built with cutting-edge technology to ensure optimum output and accuracy. We also undertake quality inspections to assure the machine’s functionality.
Gives you better results.
Our High Quality Product
In addition, we are well-known in the industry for providing the Pellet Making Machine on time and at a reasonable price. Due to their ease of use, these pellet-making machines are frequently utilized in manufacturing facilities, farms, energy and mining sectors, and many other areas.
We provide a variety of pellet-making machine ranges from which you may select the model that is most suited to your budget and requirements. Our products are ISO, CE, and SGS certified, making them more trustworthy and efficient in production.

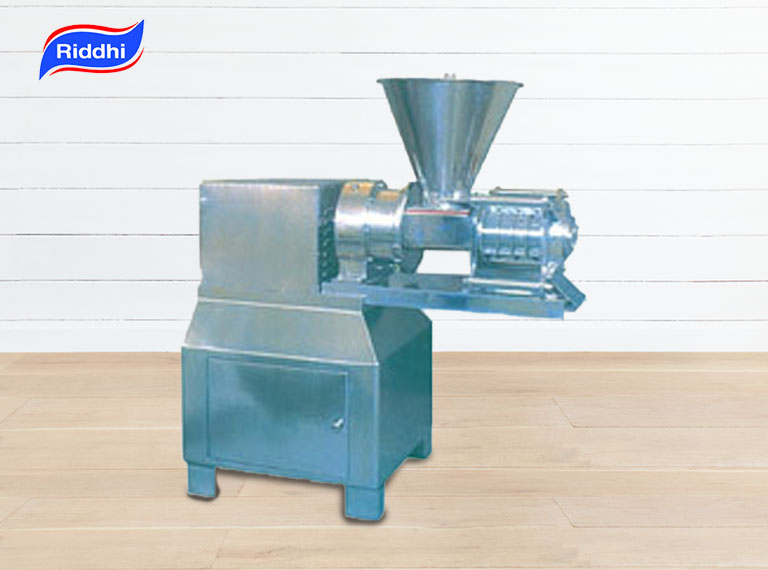

EXTRUDER MACHINE
The product to be converted is prepared in the form of a dough with binder/moisture, and is feed in the Extruder. The die roller design of extruder operates with two rolles.
The twin screw design of extruder operates with a set of conveying screens which transfer the material to the pressing cams which further press the material to a particular size of mesh. The size of the noodles is decided from the size of the Die mesh fixed.
The spheres obtained from the twin screw design has lesser bulk density compared to pellets produced by the roller design extruder.
Technical Specifications Of Extruder Machine
In other words the compressional forces that act in a die roller design extruder are for more than the other resulting in compact and DENSE pellets. It again depends upon applications & product chooses the correct machine for the optimum utility.
| Model | Output (Kgs/Qa) | Motor HP | Die Roller Perf | |||
| RDETD 65 (lab) | 2-4 | 1 | 0.8-3 | |||
| RDETD 65 | 10-15 | 1.5 | 0.8-5 | |||
| RDETD 65 (Extended) | 15-25 | 2 | 0.8-5 | |||
| RDETD 100 | 50-90 | 5 | 1-7.5 | |||
| RDETD 130 | 200-300 | 7.5 | 1.5-10 | |||
| RDETD-60 | 20-30 | 2 | 0.6-5 | |||
| RDETD-100 | 60-100 | 5 | 0.6-7.5 | |||
| RDETD-130 | 250-350 | 7.5 | 0.6-10 | |||
Spheronizer
The friction plate has a groove pattern to increase the friction with the product. When the extrudes are charged into the spherodizer, they ate thrown to the end of the spinning plate by centrifugal forces. By the contact with the plate, the extrudes are cut into short cylindrical segments which are gradually rounded by the collisions with the drum wall and the plate probabilities of fines generated during the process is there, these fines will adhere to the surface of the spheres again they can get under the friction plate, through the gap between the plate and the wall. The fines generated under the friction plate will be discharged from the machine by means of a propeller after a certain retention time, the particles have obtained the desired spherical shape, then the discharge is via centrifugal force.
The RPM of Spher’oidizer and choosing correct plate with proper formulation are the key factors. Each extrudate that comes in contact with the chequered plate, in then broken in length to its diameter, due to the tumbling & rope effect of the beads get converted into spheres. Compressed connection is provided to facilitate rope formation and avoid crushing of pellets.
Technical Specifications Of Spheronizer
| Model | Output Per batch | Motor HP | Compressed air(kg/cm2) | RPM | Weight (Kgs) | Dimension in mm LxBxW | |||||
| RDSPD-150 | 0.1-0.25 | 0.5 | N.A | 100-3000 | 25 | 500x250x400 | |||||
| RDSPD-250 | 0.25-2 | 1 | N.A | 100-1500 | 60 | 550x350x600 | |||||
| RDSPD-380 | 0.5-4 | 2 | 2.5 | 100-1500 | 250 | 1000x600x950 | |||||
| RDSPD-700 | 2-28 | 5 | 2.5 | 100-750 | 450 | 1200x900x1100 | |||||
| RDSPD-900 | 5-60 | 7.5 | 2.4 | 100-750 | 700 | 1200x1400x1150 | |||||
Technical Specifications Of Pellet Making Machine
Our provided Pellet Making Machines are more productive and have a greater capacity for generating sawdust and biomass pellets. To function more efficiently, these pellet-making machines are outfitted with updated technology such as a high-strength bearing system, oil lubricating system, and modern kick-out system. These machines are equipped with pure copper motors and precise machining technologies for producing standard biomass pellets.
| Model | Output (Kgs/Qa) | Motor HP | Die Roller Perf | |||
| RDETD 65 (lab) | 2-4 | 1 | 0.8-3 | |||
| RDETD 65 | 10-15 | 1.5 | 0.8-5 | |||
| RDETD 65 (Extended) | 15-25 | 2 | 0.8-5 | |||
| RDETD 100 | 50-90 | 5 | 1-7.5 | |||
| RDETD 130 | 200-300 | 7.5 | 1.5-10 | |||
| RDETD-60 | 20-30 | 2 | 0.6-5 | |||
| RDETD-100 | 60-100 | 5 | 0.6-7.5 | |||
| RDETD-130 | 250-350 | 7.5 | 0.6-10 | |||
Modifications to fit the needs of the clients!
Its stainless steel body provides better durability and strength. Our outstanding pellet-making machines are quick, anti-rust, and have corrosion resistance features for improved performance. You may custom alter the location and size of your pellets while using these pellet-making machines, which are simple to install and dismantle at the same time.
