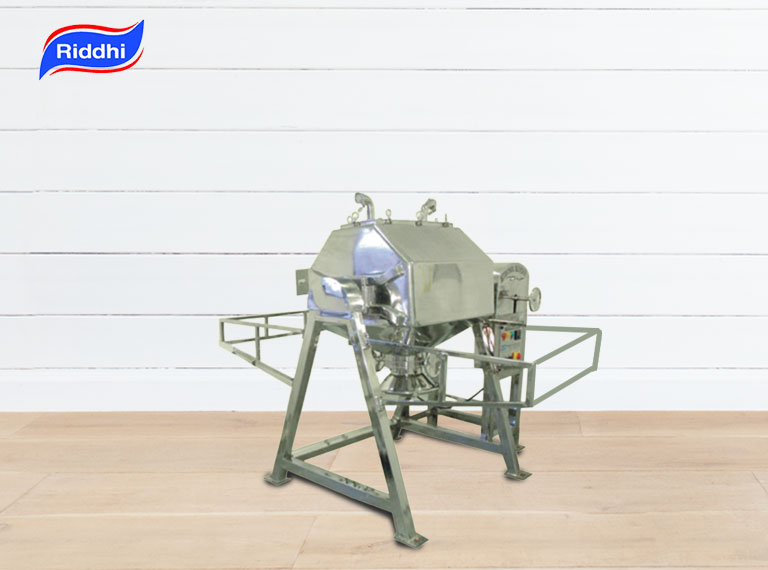

Octagonal Blender
Our offered blenders are made following industry standards utilizing quality tested components and modern technology. These blenders are available in a variety of sizes and styles to meet the needs of our clients. Aside from that, our valued customers can obtain these blenders from us at reasonable pricing.
Gives you better results.
Our High Quality Products
This Machine is ideal for blending various sorts of granular products. The machine also has a high degree of operational flexibility and is simple to clean and maintain. The machine’s functionality is further enhanced by its simple construction and GMP-compliant design.
The octagonal blender comes with a bin charging method and can also be adapted for vacuum charging. The body of the Octagonal Blender equipment is designed like an octagon with a rectangular middle part. It contains baffles for quick and effective mixing, as well as charging and discharging outlets with suitable butterfly valves. The device is ideal for areas requiring moderate mixing of dry grains or powder.
Used Latest Technology And Quality Row Material For Products
The machine is made up of a shell that has been welded with conical Octagonal ends and is supported on both sides by robust supports.We are a renowned Octagonal Blender suppliers in India. It is a versatile and efficient blending machine used for homogeneous mixing and lubricating of dry granules.
2. All moving parts are enclosed in guards
3. Contact parts in stainless steel 304 or 316
4. Manual Inching arrangement can be provided
5. Unit can be provided with bin charging arrangement
6. A safety railing with a limit switch is provided for operator safety
7. Optional PLC HMI based control panel with Scada, 12 CFR compliant Part 11
8. Flame - proof motors with flame - proof push button stations can be provided.
9. Manhole with gasket is provided to fix baffles and for ease of cleaning the shell
10. Octagonal shaped with rectangular center, conical discharge frustum and rectangular top frustum
11.Charging and discharging is through a butterfly valve. A conical adaptor can be provided for fixing charging drum after butterfly valve.
2. Dry granules sub lots mixing to increase the batch size at bulk lubrication stage of tablet Granules
Technical Specifications Of Octagonal Blender
Because of the slow speed and octagon form of the container, the Octagonal Blender Machine produces the greatest results for granules. The right side shaft is linked to a normal gearbox through chain and sprockets, which are then hooked to an electric motor. The whole drive assembly is encased in an S.S. side panel. The Octa body’s inside is mirror polished, while the outside, frame, and guards are matt finished.
| Models | GROSS VOL litres | WRKG. VOL litres | MOTOR hp rpm | OUTPUT SPEED inch. | DISCH. VALVE | |||||
| RDOB 5 | 12 | 10 | 0.5 | 12 | 4″ | |||||
| RDOB 10 | 25 | 20 | 0.5 | 12 | 4″ | |||||
| RDOB 25 | 50 | 40 | 0.5 | 12 | 4″ | |||||
| RDOB 100 | 250 | 200 | 1 | 8 | 6″ | |||||
| RDOB 150 | 375 | 300 | 1 | 5/10 | 6″ | |||||
| RDOB 200 | 500 | 400 | 1.5 | 5/10 | 6″ | |||||
| RDOB 250 | 625 | 500 | 2 | 5/10 | 8″ | |||||
| RDOB 500 | 1250 | 1000 | 3 | 5/10 | 10″ | |||||
| RDOB 1000 | 2500 | 2000 | 5 | 5/10 | 12″ | |||||
Modifications to fit the needs of the clients!
To guarantee optimum mixing, two-thirds of the capacity of the Cone Blender is filled. Due to the octagonal form of the product container, grains come from all sides in an Octagonal Blender, requiring less RPM. Because of their shape, this type of material receives adequate continuous movement if the container has just modest movement, resulting in good blending / lubricating of granules. The power consumption is lower than that of other blenders of a similar kind.
