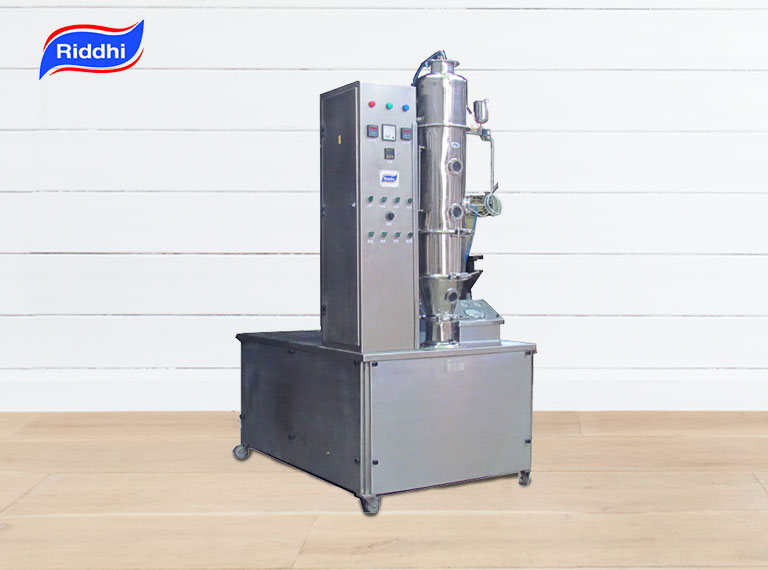

Fluid Bed Processor
They are used for blending, granulation, drying, and coating in pharmaceutical, chemical, food, and other industries. Our Fluid Bed Processor provides an efficient and effective way for drying, granulating, and coating. It is designed with the most recent GMP standards in mind, with all contact components made of AISI 316 quality.
Gives you better results.
Our High Quality Product
We provide flexible installation by utilizing modular construction and streamlined design. The machine is vertical in construction, with auto-operating electrical controls and a spray system for spraying an active component into the carrier bed for top or bottom spraying.
It is explosion-proof and can efficiently and evenly dry wet granulated pharmaceutical solid powder at a lower temperature. The Fluid Bed Processor is an excellent technology for producing granules from powder utilizing the top spray approach.
Used Latest Technology And Quality Row Material For Products
The technique is best suited since the same equipment can be used for top spray granulation, bottom spray coating, and drying all three parameters in the same machine, decreasing the number of machines required for a process. The granulation is consistent and superior with fluid bed processor technology because the particle movement is very quick owing to fluidization, and the mixing of powder and liquid is highly efficient and uniform due to the liquid/moisture being sprayed continually.
2.)All contact parts SS316.
3.)All other part SS304.
4.)Electric Heaters or Steam Heaters.
5.)Hinged Expansion chamber for ease of cleaning.
2.) Flame Proof Electicals.
3.) Fresh Air Filter – HEPA Fitter.
4.) Process Automation PLC Control.
5.) Legs and base plate with SS304.
2.) Very Economical in Cost.
3.) High efficiency drying.
4.) Coating uniformity on pellets.
5.) Pellet stability improved.
6.) Operational time 60% of the coating pan time.
7.) Coating is done with the minimum loss of spraying solution.
Technical Specifications Of Fluid Bed Processor
We are reckoned amidst the well-known Fluid-Bed Processors supplier in India as we offer only the best quality products. The main advantage of fluid bed technology is consistent, reproducible product quality with mild product treatment. Despite advancements in drying technology, the fluid bed processor offers an unsurpassed drying speed.
| Models | Product Bowl (Pellets) | Motor HP Pellets | Heater KW | Spray Gun | Blower Capacity CFM | Height mm A | Length mm B | Width mm C |
| RDFBP – 40 | 60 | 3 | 12 | 1 | 3000 | 3600 | 2000 | 1400 |
| RDFBP – 75 | 90 | 5 | 18 | 1 | 4000 | 4000 | 2200 | 1600 |
| RDFBP – 100 | 120 | 75 | 24 | 1 | 4500 | 4400 | 2500 | 1800 |
| RDFBP – 150 | 180 | 10 | 32 | 1 | 5500 | 4800 | 3600 | 1800 |
| RDFBP – 200 | 240 | 125 | 40 | 1 | 6000 | 5200 | 3000 | 2000 |
Modifications to fit the needs of the clients!
As each particle is surrounded by drying air, the fluidization method works well for drying granular substances. Furthermore, the vigorous mixing of the particles and hot air leads to temperature uniformity. The distribution of particle size and composition across the bed. Also, they are available in customized sizes based on your requirements.
