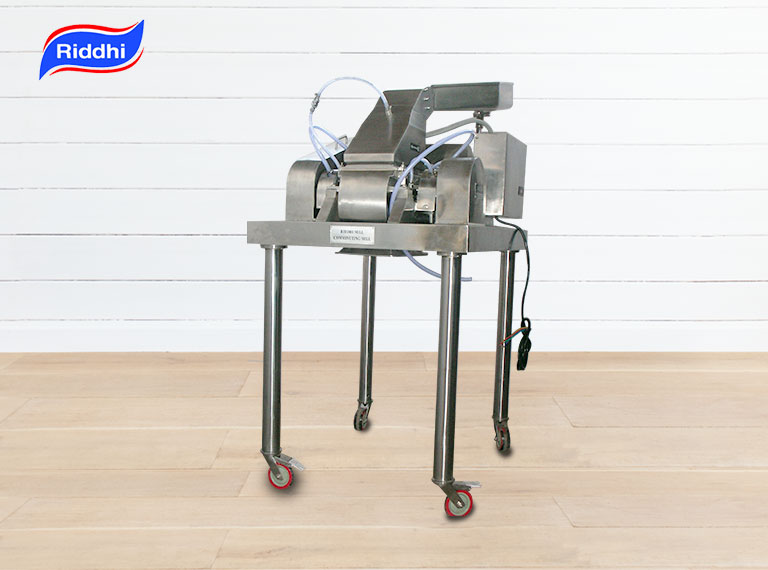

Comminuting Mill

We are a leading Comminuting Mill manufacturers in India.

Our firm has established a name as the leading supplier of Comminuting Mill. The machine has a tried-and-true modest and appealing design. The Comminuting Mill is used to reduce the size of wet and dry powders or granules in a range of industries where size reduction is critical. For simplicity of maintenance, the beaters are assembled in separate pillow blocks.

27+

Years Of Experience
Gives you better results.

Get A Free Quote

Our High Quality Product

There will be very little downtime since just the beater’s assembly will need to be reversed, rather than the entire chamber, for the knife to hit forward or vice versa, which may be done by the operator.

Also, these Comminuting mills are available from us at an inexpensive price. Being a prominent and leading Comminuting mills suppliers in Maharashtra, we offer and supply the finest quality machines. Comminuting mills are used in the pharmaceutical, chemical, food, cosmetics, and fertilizer industries, among others, for downsizing, milling, pulverization, and dispersion of wet and dry products.

Download Catalogue

Used Latest Technology And Quality Row Material For Products

The material falls on the rotor blade’s beater assembly for milling or pulverization after being poured from the top through the feed hopper. The shrinking of particles occurs as a result of the knife edges installed on the rotor, and through a sieve, the material is pushed outward from the bottom hole. These Knife edges can also be easily removed for cleaning.

Call Now: (+91) 9821018579

OPERATION

Product kept in the hopper slide down to the enclosed chamber, where it is milled in between beaters and screen to the required mesh/micron size which can be collected at the bottom of the container. Quality and output depends upon the three main variables1) Beaters shape (knife/impact forward) 2)Speed and 3)Screen size.

Knife edge for coarse or large particles and impact or flat edge for finer particles.High speed for fine grinding, low speed for coarser particles. A wide range of screens is available for various process needs.

DESCRIPTION

Latest improvements in design makes this unit a truly GMP model and Versatile in operation & maintenance.

Unit consist of S.S.304 quality hopper, feed throat and processing chamber (can be provided in S.S.316 quality at extra cost ) with beaters assembly , heavy duty motor, star delta starter with overload relay, three speed step pulley, suitable screen , S.S. cladded base having tubular legs with castors, optional jacket for the feed throat and processing chamber for cooling.

APPLICATIONS

Riddhi mill has been specifically designed for wet and dry granulation, pulverization or dispersion of products or ingredients found in the pharmaceutical, Chemical and food industries .It is also finds application in Cosmetics, confectionery, Fertilizers, Insecticides, detergents and Electroflux Industries etc.

Technical Specifications Of Comminuting Mill

The Comminuting Mill is available in Standard and GMP variants, with SS 304 / SS 316L contact parts and capacities ranging from 10 to 100 Kgs. per hour depending on the product and the size reduction required.

OUTPUT	50 kgs. to 800 kgs per hour depending on the product and the reduction required in size.
ROTOR SPEED	1000/2250/4500 RPM.
BEATERS	16 NOS Stainless steel with knife and impact edges
SCREEN AREA	495 mm x 135 mm (66825sq.mm)
MOTOR	7.5HP/1400RPM/440V/50CS/3PH/AC.
STARTER	Star Delta with no-load and overload protection.
NET WEIGHT	400 kgs.
GROSS WEIGHT	530 kgs..
DIMENSIONS	1230 x 760 x1575 MM(HT)
CASE DIMENSIONS	1380 x1050 x1900 MM(HT)

Modifications to fit the needs of the clients!

Its benefit is that it exposes the product to the operator and the environment as little as possible. In functioning, it is versatile and requires little maintenance. Even changing from knife to impact is as simple as inverting the rotor assembly.
