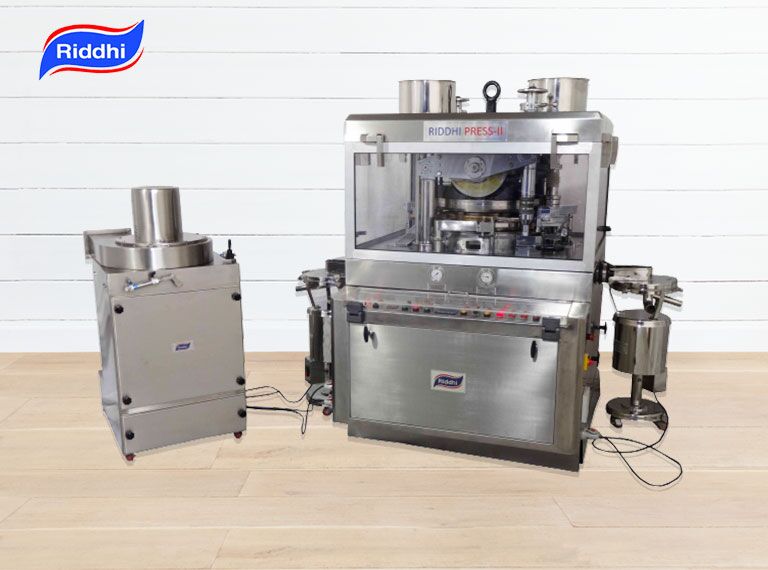

High Speed Tablet Press
Model : RDIID-37
No.Of Stations : 37
Max. Output(Tab/hr) : 222,000
Max. Operating Pressure(Main) : 100 kN
Max. Tablet Dia : 25 mm
Max. Depth of Fill : 20.5 mm
Main Motor : 7.5 HP/ 1440 RPM / 3 PHASE / A.C.
Feeder Motor : 0.25 HP/2800 RPM/ 3 PHASE / A.C.
Total Power: 8 HP / 3 PHASE / A.C.
Overall Dimensions : 148 x 141 x 188(H)(Cms.) Approx.
Net Weight : 2250 Kgs.

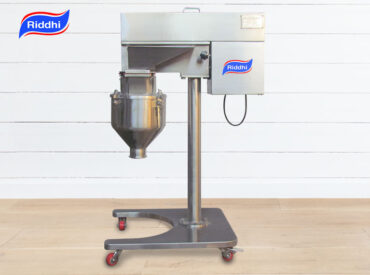

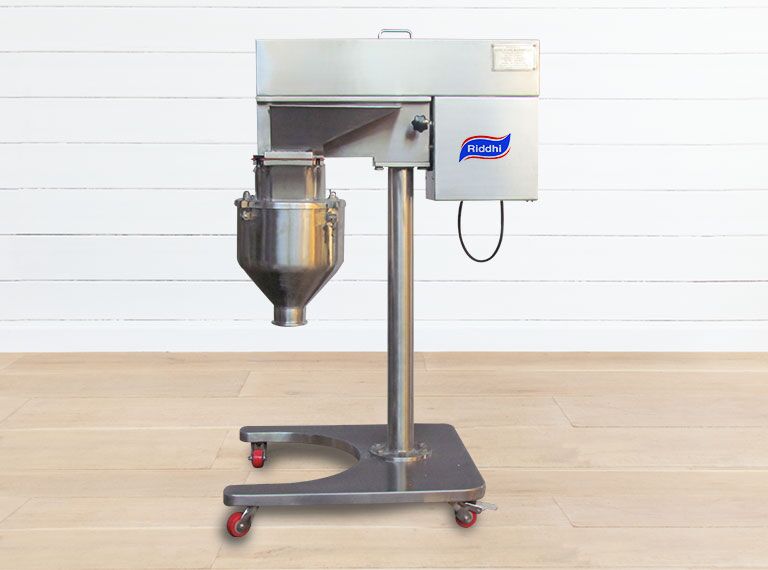

Mutli Mill
Model : RDMM
Output : 50 to 200 kgs/hr
Rotor Speed : 750 / 1500 / 2300 / 3000 RPM
Screen Dia : ID 260 mm x HT 135 mm
Electricals : 3 HP / 1440 rpm.

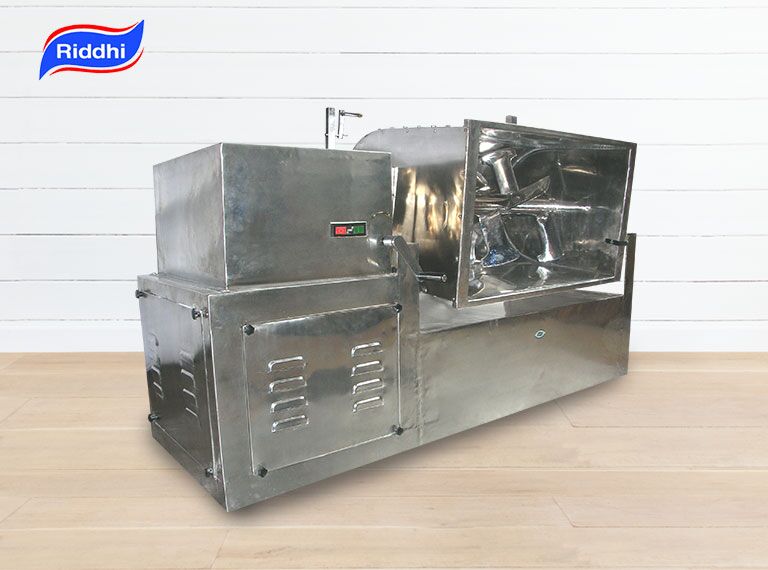

Mass Mixer
Model No. : RDMM – 100 GMP
Model Type : Horizontal
Capacity : 100 Kgs.
Over-flow Capacity : 220 Litres
Speed of Stirrer : 32 RPM
Motor : 5HP/415V/3 Phase,50 Hz.Non FLP Type
Gear Box : Worm Reduction Type
Starter : D.O.L. Starter for 5 HP Motor
Starter Make : BCH / Equivalent.
Net Weight : 450 Kgs.

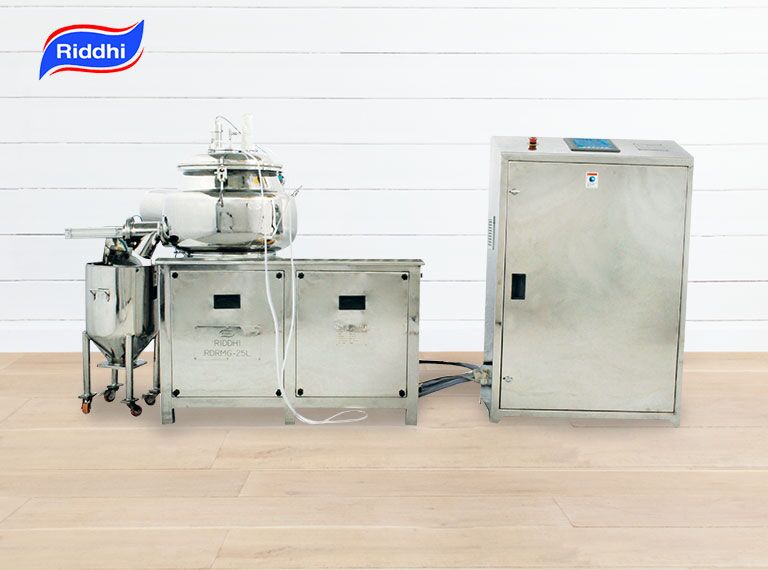

Rapid Mixer Granulator
Models : RDRMG-100
Gross capacity (ltrs.) : 100
Working capacity (lits.) : 80
Batch Size in Kg. : 20-30
Mixer Motor : 7.5 HP / 10 HP
Mixer RPM : 75/11500
Granulator Motor : 2 HP / 3 HP
Length (cm) : 240
Width (cm) : 210
Net Weight (approx) : 1400 kg

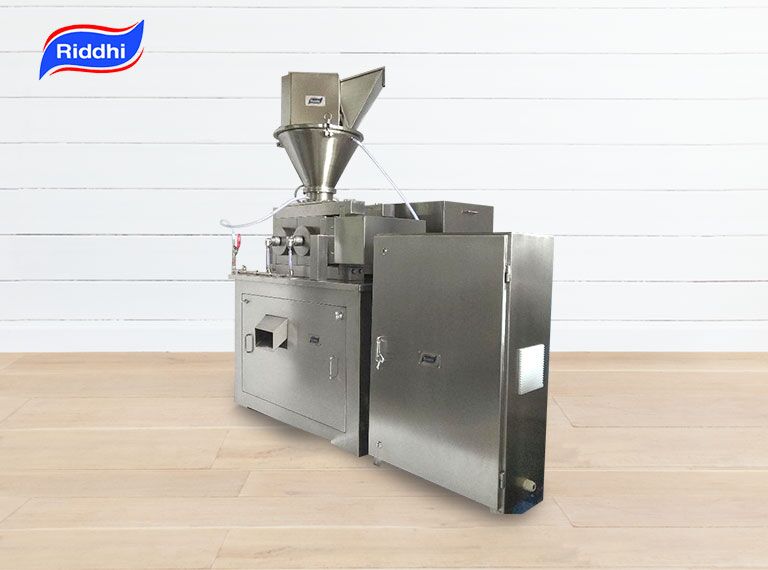

Roll Compactor
Model No. : RDRC – 100 / 25 (LAB.)
Type of Model : GMP, Plain & Non FLP Model
Size of Roll : Ø100 x 25mm Width
Output * ( Kg. / Hr. ) : 2 to 5
Roll Gap Adjustment : Fixed to 0.5mm
No. of Hydraulic Cylinder : Not Applicable.
Max. Operating Pressure : 5 Tons / 50 kN

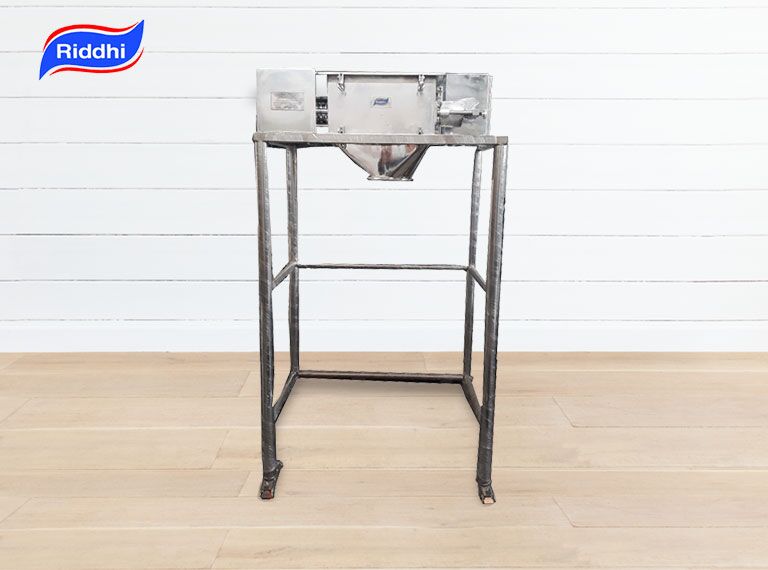

Oscillating Granulator
Model : RDOG – Horizontal
Hopper Capacity : 33 Liters
Screen Size : 388 mm (w) x 762 mm (L)
Stirrer size : 138 mm dia x 368 mm Lenth
No. of Oscillation : 110 per minute
Output : 30 to 50 Kgs/hr (Depending on Material)
Charging Height : 1135 mm
Discharging Height : 655 mm
Motor : 1 Hp/1440 rpm
Motor Make : Crompton/Remi/Sabar

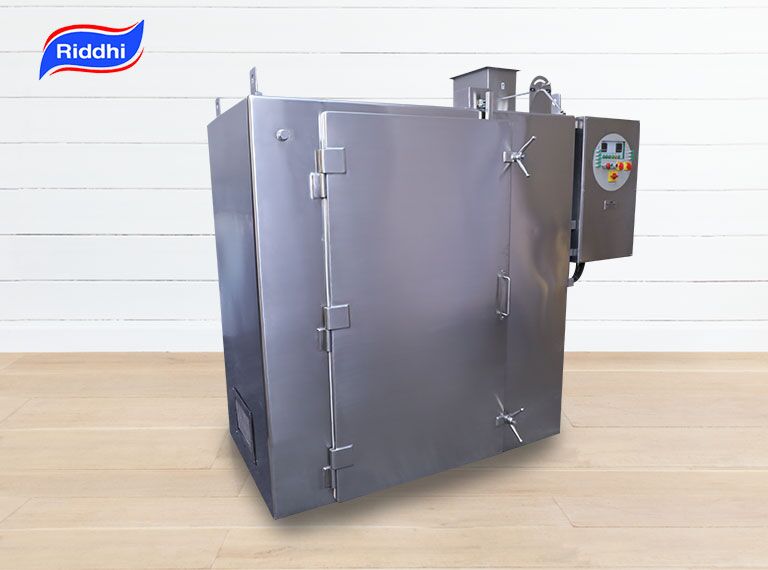

Tray Dryer
Model : RDTD-24
No. Of Trays : 24
Tray size : 16 x 32 x 1.25
1000C : 6 x1000 W
2000C : 9 x1000 W
3000C : 12 x1000 W

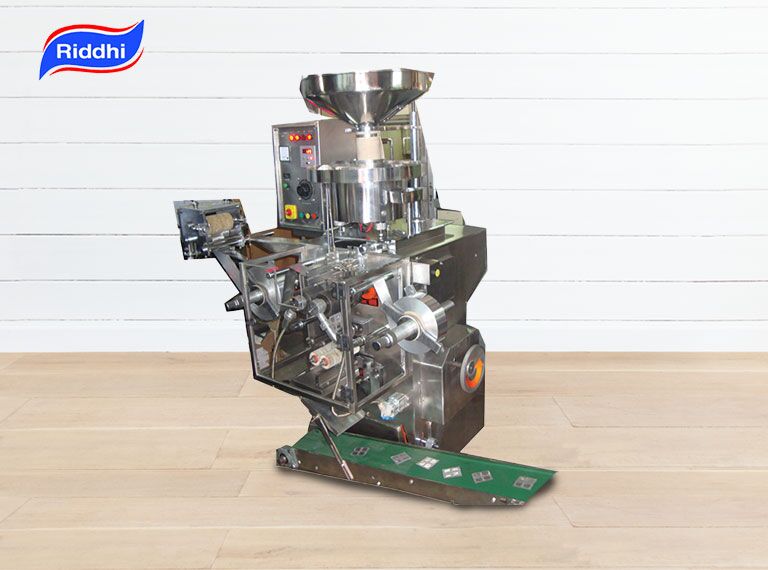

Strip Packing Machine
MODEL : 4 TRACK
Foil Width : 145mm
Output /Min. : 600-1200
DRIVE MOTOR : 0.5 HP 3 Phase 415 Volts 50Hz
NET WEIGHT : 450.000 Kgs.
GROSS WEIGHT : 750.000 Kgs.
DIMENSION : 1000(L) X 850 (W)X 1850 (H) MM

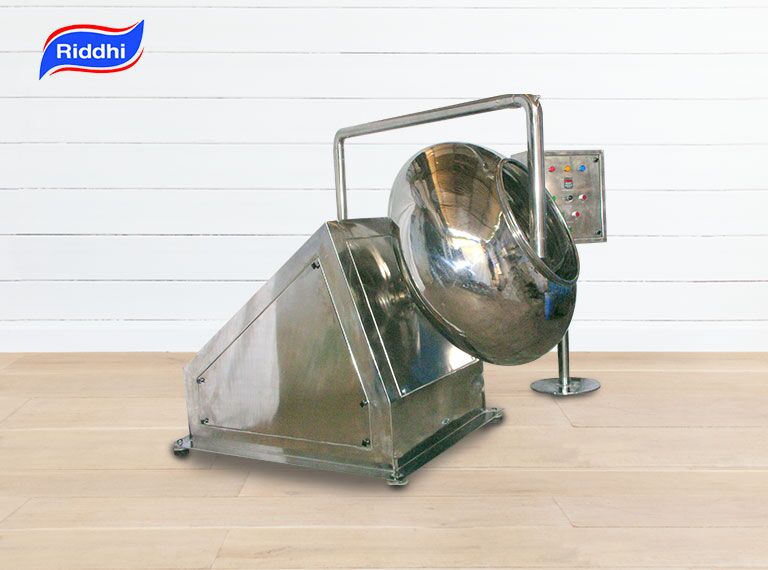

Coating Pan
Models : RDC-30
Capacity : 45 ltrs
Pan RPM : 8 to 20 &12 to 30
Blower Capacity : 90 CFM
Heater KW : 3.5
Blower Motor : 0.33 HP
Electricals : 1.5 HP

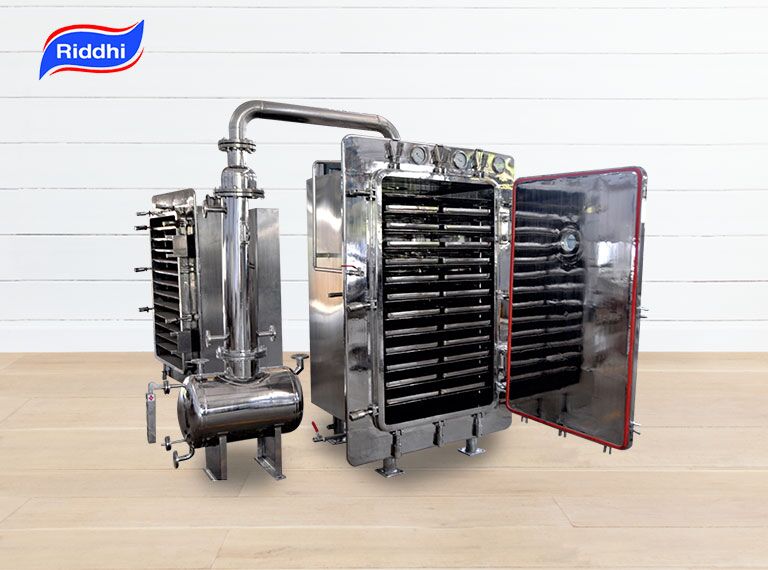

Vacuum Tray Dryer
Model : VTD 6
Capacity in Trays : 6
Number of Shelves : 6
Dummy Shelf : 1
Trays Per Shelf : 1

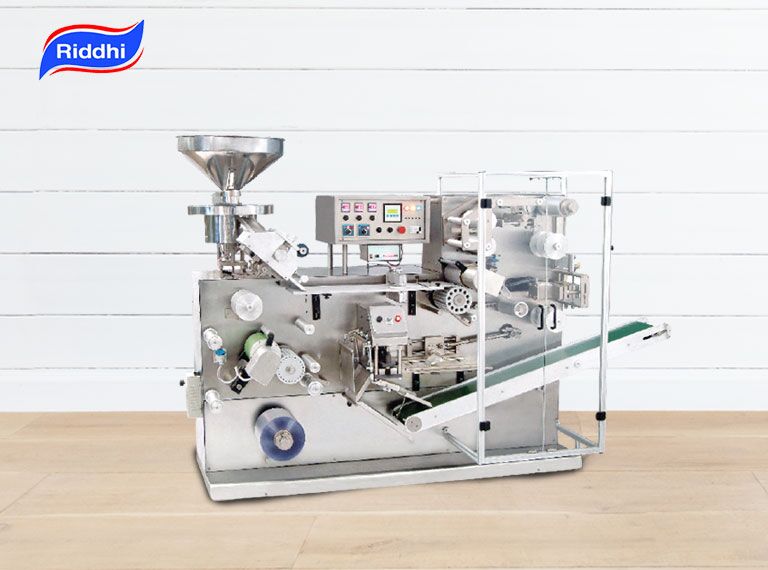

Blister Packing Machine
Base Material : PVC/PVC-PVDC/ACCLAR
PVC Base Film Width Max. : 210 mm
PVC Film Thickness Max. : 0.20 to 0.40 mm
PVC Reel Dia. Max. : 440 mm
Aluminum Foil Width Max. : 206 mm
Maximum Web Speed : 5 Meters / Min
Pack Length. : 200 mm
Pack Width. : 100 mm
Maximum Out Put. : 240 Packs / Min.
Gross weight : 2400 Kgs
Colloid mill
Model No. : RDCM3 – VERTICAL
Drive : Directly Drive thru Coupling
Type : GMP
Particle Size Reduction : 5 to 10 microns
Hopper Capacity : 13 Litres
Product Contact Parts : Stainless Steel 316 Quality.
Finishing : Mirror Polished
Jacketting Ports : Charging Hopper, Housing & Cock.
Motor Make : Crompton Greaves / Equivalent.
Net Weight : 200 Kgs. Approx.

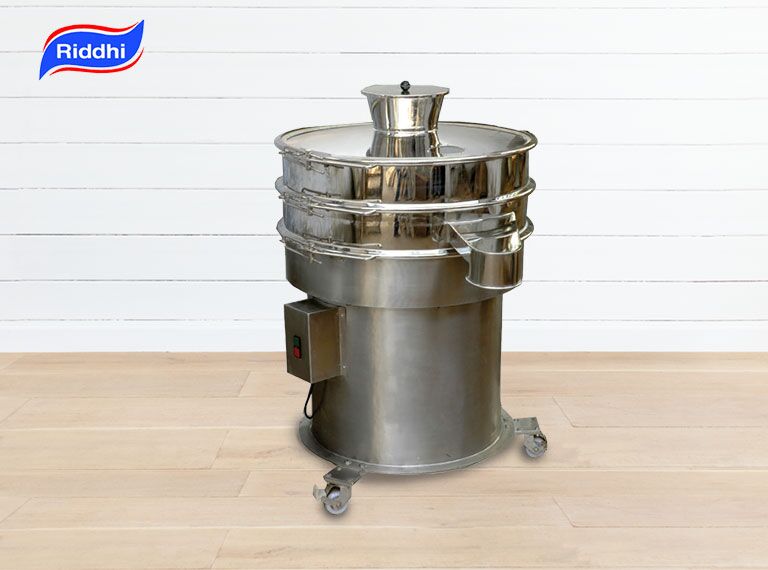

Vibro Sifter
Model : RDVS-20
Screen Diameter : 550mm
Charging Height : 125mm
Discharging Height : 550mm
Electrical Motor : 0.25 HP.3. A.C.
Overall Dimension in mm : 600(w)600(D)800(H)
Net weight : 125kg
Capacity /hour : 20-200kg

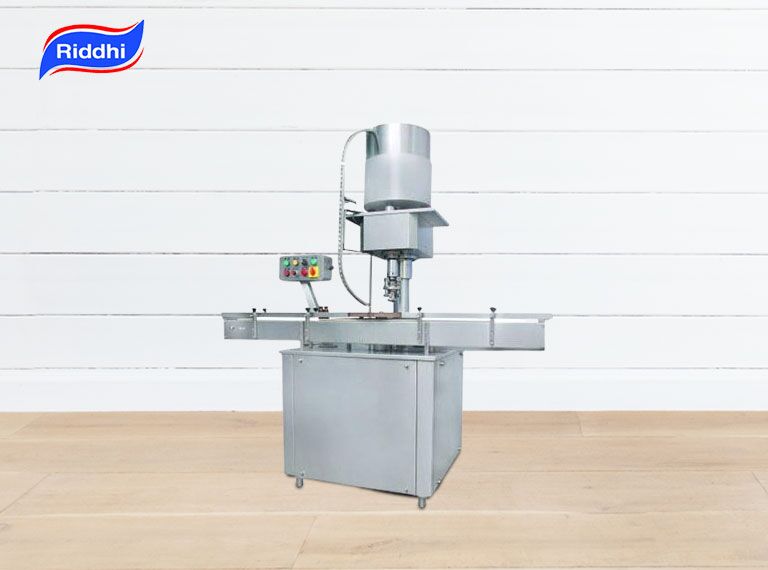

Bottle Capping Machine
Model No. : RDBCS-25
Type : Semi Automatic, Non-FLP & GMP
Sealing Range. : 20 / 25 / 28mm by changing Die.
Motor Make : Hindustan / Equivalent.
Finishing : Contact Parts – Mirror Polished.
Overall Dimensions. : 27” x 25” x 66”(H) – Approx.
Net Weight : 200 Kgs. – Approx. Gross Weight 300kgs

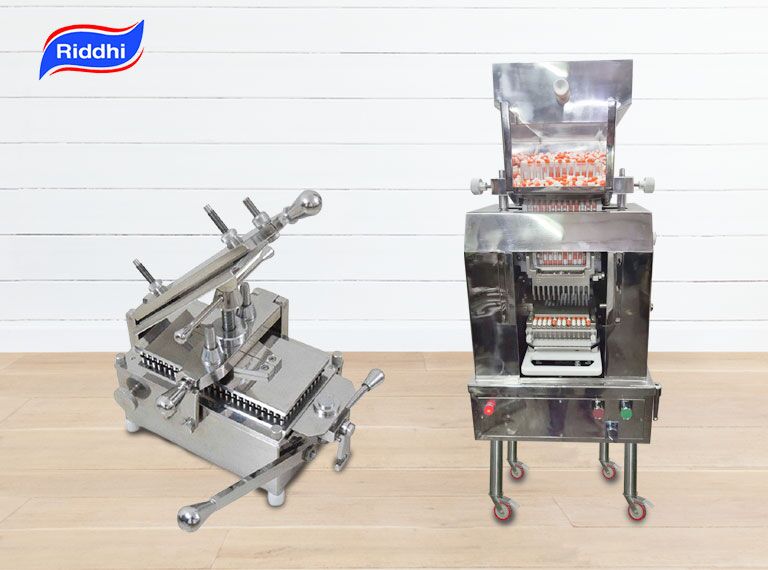

Capsule Filling Machine
Output. : 2 to 2.5 Lakh capsule per shift
Drive : ¼ HP, 3 phase motor, 1400 RPM
Dimension : 630 x 430 x 780 mm
Weight : 75 Kg.

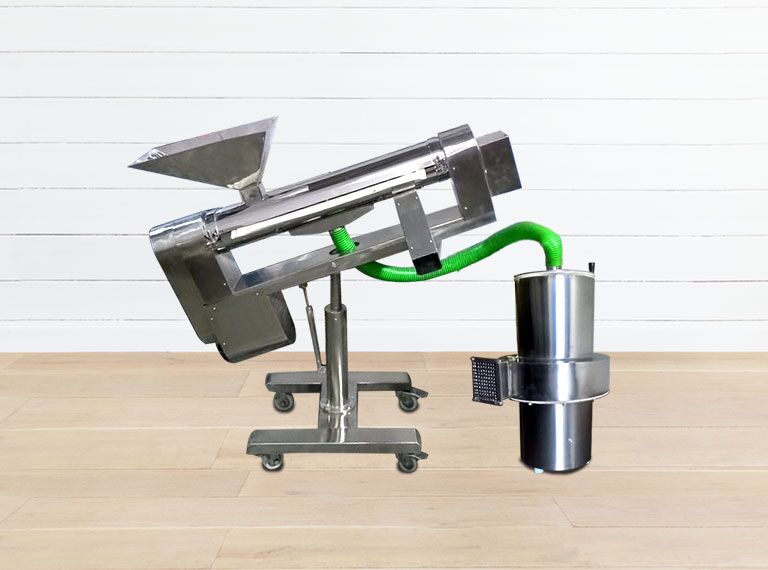

Capsule Polishing Machine
Machine : Single Brush Capsule Polishing Machine
Model : RDCP 20
Motor : ½ Hp
Brush : 1 No. Nylon
Dry Granulation
Model No. : RDRC – 100 / 25 (LAB.)
Type of Model : GMP, Plain & Non FLP Model
Size of Roll : Ø100 x 25mm Width
Output * ( Kg. / Hr. ) : 2 to 5
Roll Gap Adjustment : Fixed to 0.5mm
No. of Hydraulic Cylinder : Not Applicable.
Max. Operating Pressure : 5 Tons / 50 kN

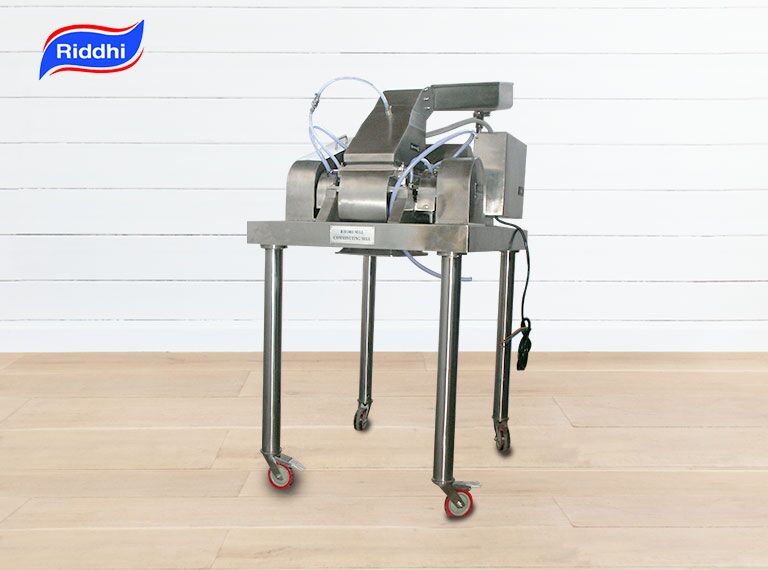

Comminuting Mill
ROTOR SPEED : 1000/2250/4500 RPM.
SCREEN AREA : 495 mm x 135 mm (66825sq.mm)
MOTOR : 7.5HP/1400RPM/440V/50CS/3PH/AC.
NET WEIGHT : 400 kgs.
GROSS WEIGHT : 530 kgs..
DIMENSIONS : 1230 x 760 x1575 MM(HT)
CASE DIMENSIONS : 1380 x1050 x1900 MM(HT)

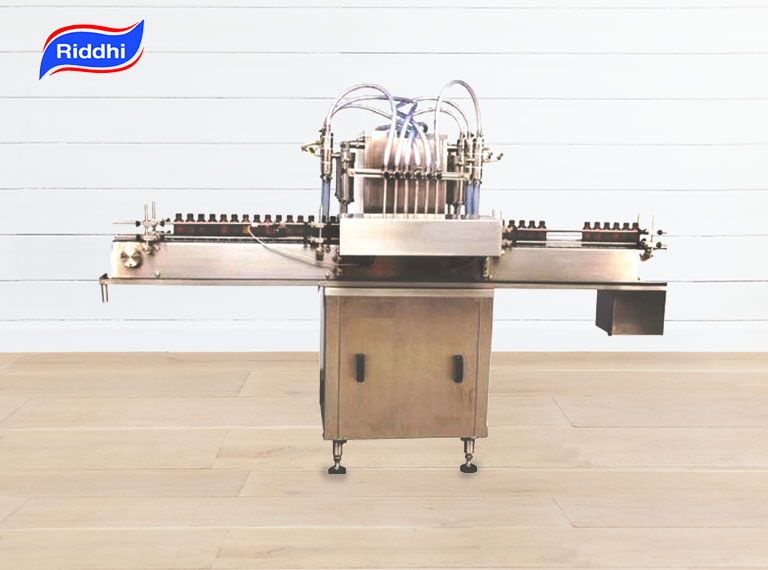

Liquid Filling Machine
Model : RALF-100
Out put/Hour : 2400 to 6000*
Direction of movement : Left to Right
Number of head/syringes : 4 Nos.
Specification Main Machine : 0.5 HP/415 Volts/50Hz.
Height of Conveyor** : 860mm to 910mm Adjustable
Net Weight : 600 Kgs.
Gross Weight : 850 Kgs
Container Size* : Flat / Square
Powder Mixer Machine
Model No. : RDMM – 100 GMP
Model Type : Horizontal
Capacity : 100 Kgs.
Over-flow Capacity : 220 Litres
Working Capacity : 156 Litres
Speed of Stirrer : 32 RPM
Motor : 5HP / 415 V / 3 Phase, 50 Hz. Non FLP Type
Gear Box : Worm Reduction Type
Starter : D.O.L. Starter for 5 HP Motor
Net Weight : 450 Kgs.

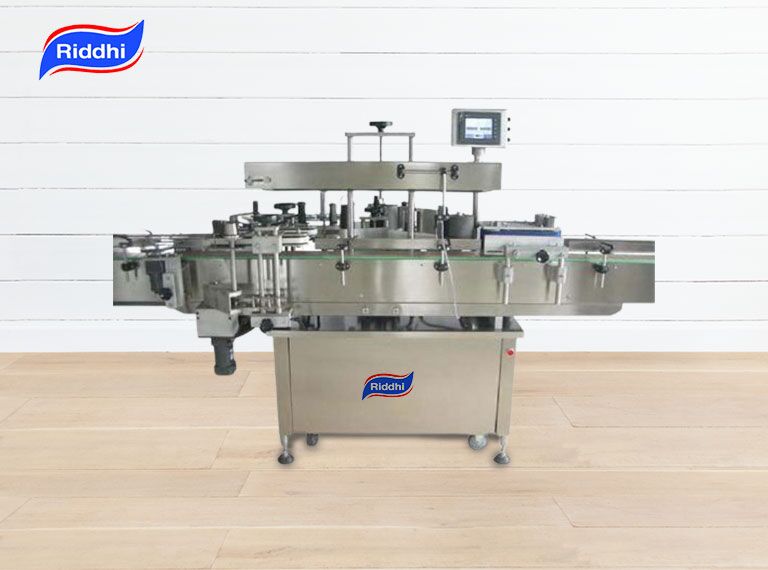

Sticker Labeling Machine
Machine Operating Direction : Left To Right
Labeling accuracy (mm) : ±1.0 mm
Label Height : 10 Mm To 150 mm
Label Length : 12 mm To 220mm
Gap Between Two Labels : Min. 3 mm
Label Roll Dia. : 300 mm Max. Ø
Label Core Dia. : 75 mm To 76 mm Ø
Power Consumption : 1 KW
Height Of Conveyor : Adjustable From 800 To 900 Mm
